RK3568 Platform
Quad-core 64-bit Cortex-A55 processor up to 2.0GHz.
Home › Display & Industrial Computing › HQL-AIO215-A
HUAQILINK · Android AIO

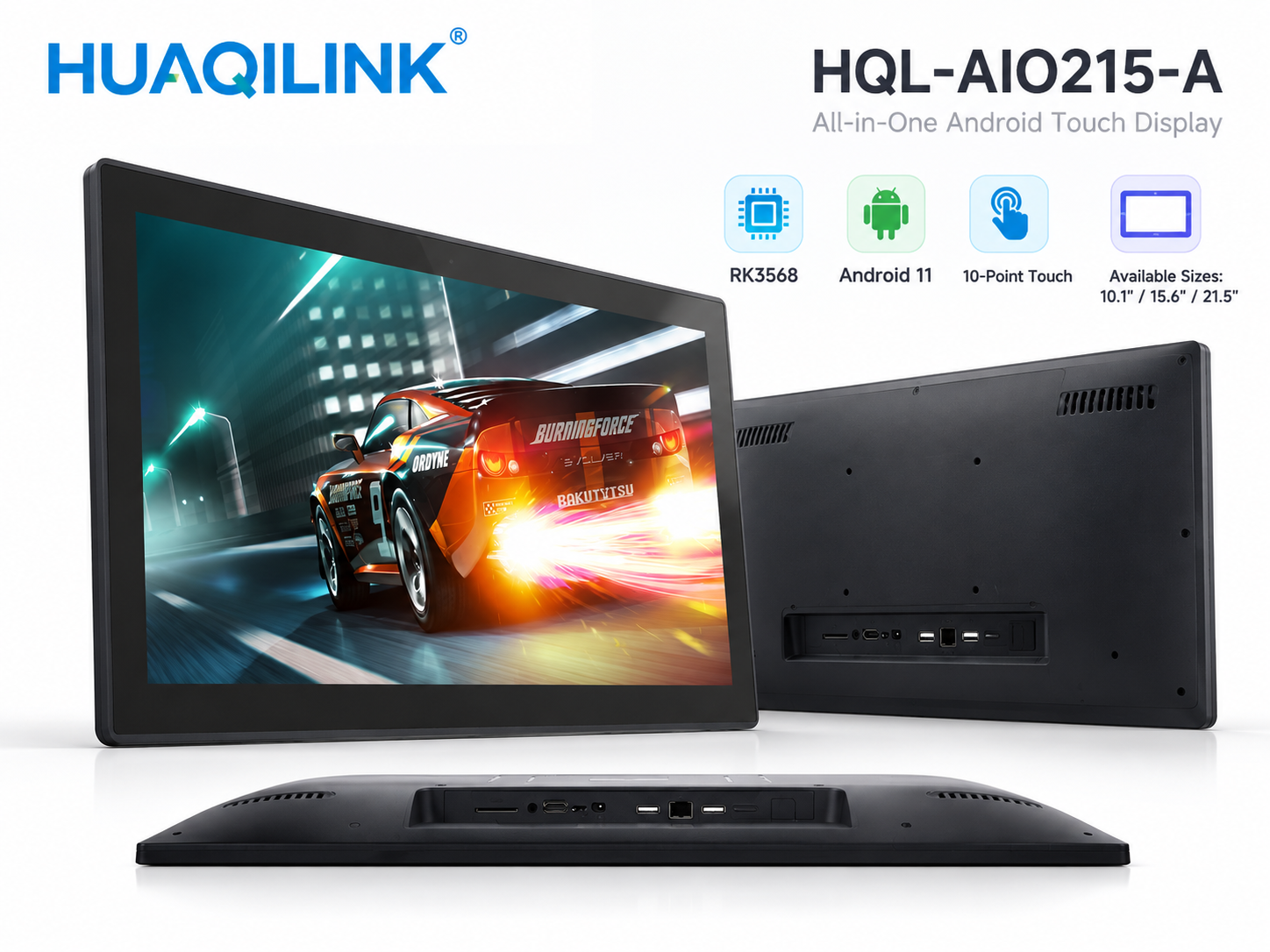

HQL-AIO215-A
Android Touch All-in-One PC
Integrated RK3568 Android touch terminal for retail, kiosks, smart equipment and interactive projects, with networking and flexible peripheral expansion.
Available Sizes: 10.1" / 15.6" / 21.5"
RK3568Android 1110-Point PCAPWi-Fi + Bluetooth
Key Features
A Flexible Android Touch Platform
Designed for interactive commercial systems, unattended operation and project integration.
02
Full HD Touch
21.5-inch reference configuration with 1920×1080 and 10-point capacitive touch.
03
Rich Expansion
USB, optional serial, GPIO, TF card and optional NFC/RFID.
04
Network Ready
Ethernet, Wi-Fi, Bluetooth, OTA updates and watchdog support.
Technical Specifications
HQL-AIO215-A
Reference specifications for the 21.5-inch configuration.
Display & System
- Display
- 21.5 inch, 1920 × 1080
- Brightness
- 250 cd/m² typical; 500 cd/m² optional
- Viewing Angle
- 89° / 89° / 89° / 89° typical
- Contrast Ratio
- 800:1 typical
- Touch
- 10-point G+G capacitive touch
- CPU
- RK3568 quad-core 64-bit Cortex-A55, up to 2.0GHz
- Memory
- DDR3 2GB; 4GB customizable
- Storage
- eMMC 16GB; 32GB customizable
- Operating System
- Google Android 11
Connectivity & Expansion
- Network
- RJ45 Ethernet; 2.4G Wi-Fi; 5G Wi-Fi optional
- Bluetooth
- Supported
- USB
- USB 2.0 ×1, USB 3.0 ×1
- Serial
- 2 groups TTL / RS232 / RS485 optional
- GPIO
- 4 groups I/O detection ports
- Camera
- 2MP standard; 1.3MP / 5MP options
- Card Reader
- NFC / RFID optional
- Power
- DC 12V 4A; PoE optional
- Operating Support
- Software watchdog, RTC and scheduled power on/off
Size note: 10.1-inch and 15.6-inch versions are available. Display, enclosure and selected interface details may vary by size and will be confirmed in the quotation.
OEM & ODM
Configure HQL-AIO215-A for Your Project
Confirm screen size, memory, storage, interfaces, mounting, branding and packaging with our team.
