01
Intel i7 x86
Quad-core platform at 2.7GHz with turbo frequency up to 3.5GHz.
Home › Display & Industrial Computing › HQL-IPC215-W
HUAQILINK · Industrial Computing

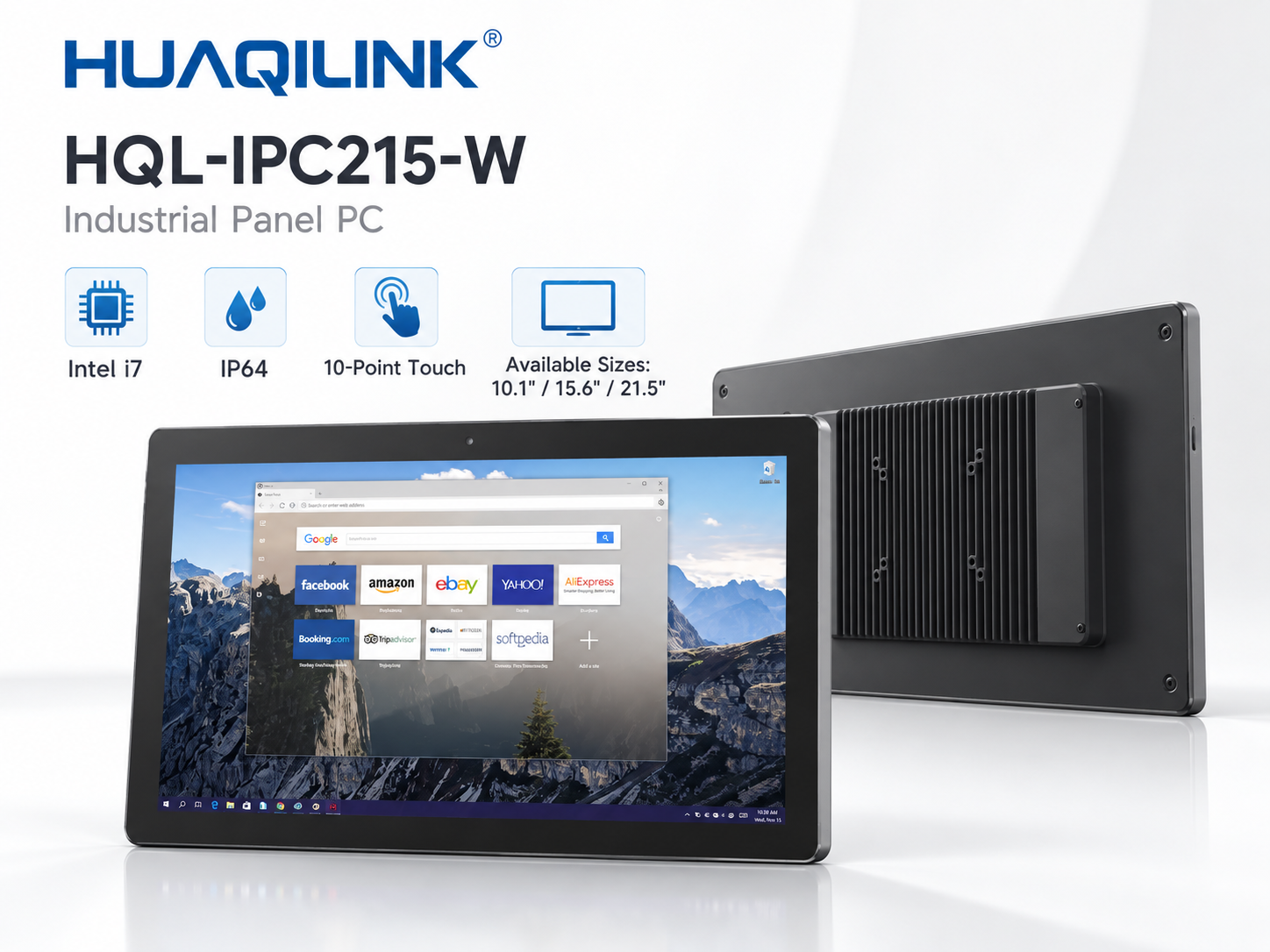

HQL-IPC215-W
Industrial Touch Panel PC
Metal x86 touch-computing platform for HMI, machine control, factory automation, MES and production monitoring.
Available Sizes: 10.1" / 15.6" / 21.5"
Intel i7IP6410-Point PCAPWindows / Linux
Key Features
Industrial Computing for Demanding Projects
Stable x86 operation, a metal enclosure and rich I/O for commercial and industrial integration.
02
Industrial Touch
21.5-inch reference configuration with Full HD and 10-point capacitive touch.
03
Rich Industrial I/O
Four USB ports, RS232, HDMI, VGA, Gigabit Ethernet and optional expansion.
04
Rugged Housing
All-metal thermal design, IP64 protection and fanless project configuration.
Technical Specifications
HQL-IPC215-W
Reference specifications for the 21.5-inch configuration.
Display & System
- Display
- 21.5 inch, 1920 × 1080
- Brightness
- 300 cd/m² typical
- Viewing Angle
- 89° / 89° / 89° / 89° typical
- Contrast Ratio
- 3000:1 typical
- Touch
- 10-point capacitive touch
- CPU
- Intel i7, x86 architecture
- Frequency
- 2.7GHz; turbo up to 3.5GHz
- Memory
- DDR3 4GB; 8GB customizable
- Storage
- 32GB standard; 64GB / 128GB / 256GB / 512GB options
Connectivity & Industrial I/O
- Operating System
- Windows 7 / 10, Linux / Unix options
- Network
- Gigabit RJ45 Ethernet; 2.4G Wi-Fi
- Bluetooth
- Optional
- USB
- USB 2.0 ×2, USB 3.0 ×2
- Serial
- RS232 ×2 standard
- Video
- HDMI ×1, VGA ×1
- Camera
- 2MP / 5MP optional
- Power
- DC 12V 5A
- Protection
- IP64
- Working Temperature
- 10°C to 70°C
Size note: 10.1-inch and 15.6-inch versions are available. Display, enclosure and selected interface details may vary by size and will be confirmed in the quotation.
OEM & ODM
Configure HQL-IPC215-W for Your Project
Confirm screen size, operating system, memory, storage, I/O, mounting, branding and packaging with our team.
