HQL-KIOSK15
Self-Ordering POS Terminal
A compact wall-mountable Android self-ordering terminal with a 10.1-inch touch display, integrated QR-code scanning, receipt printing and optional contactless NFC.
10.1-inch TouchBuilt-in ScanReceipt PrintingWall Mountable
Key Features
Compact Self-Service in One Terminal
Designed for food ordering, quick payment and unattended service where space-efficient wall or counter installation is required.

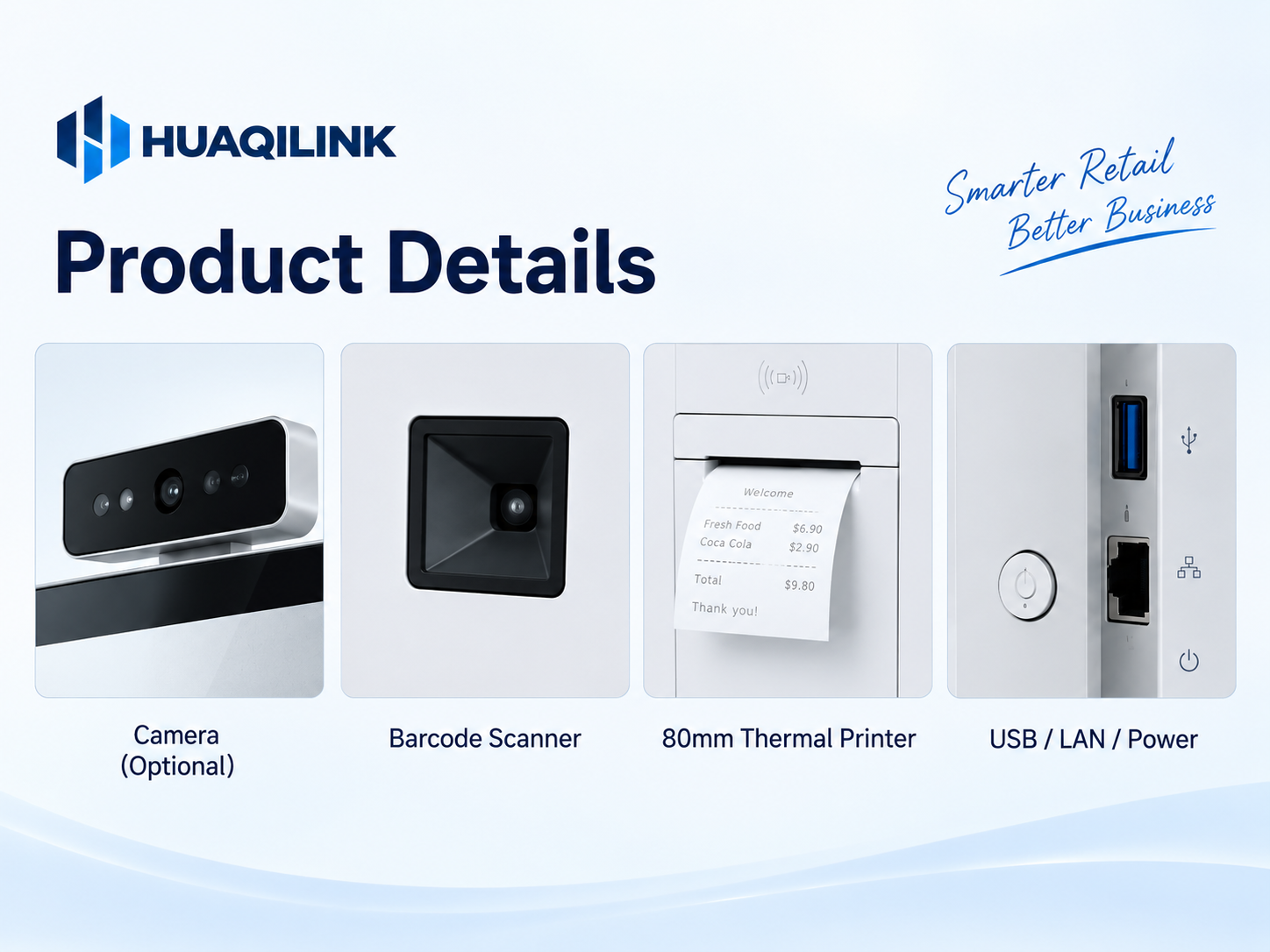

10.1-inch Touch
1024×600 color display with G+G capacitive 10-point touch.

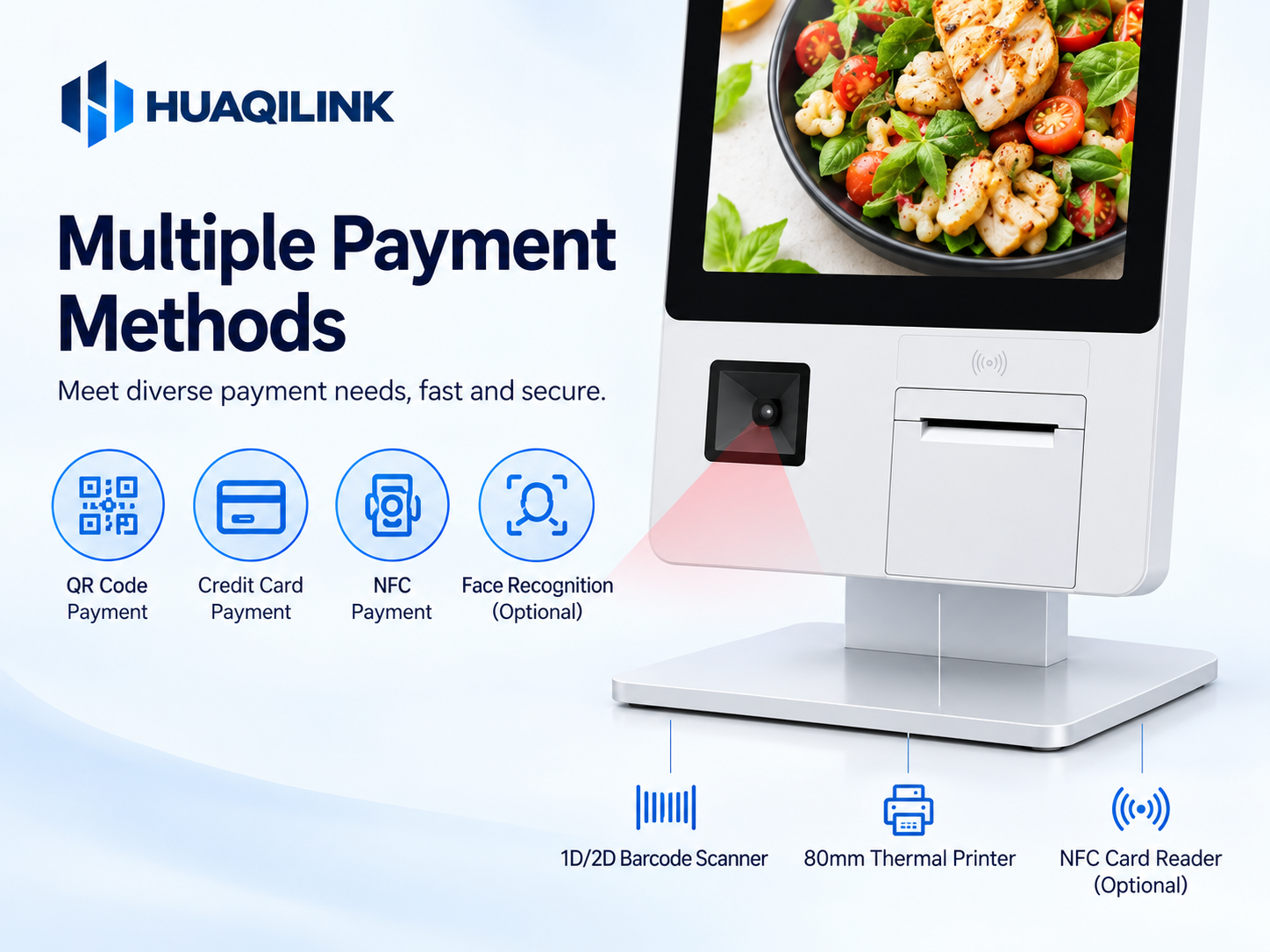

QR-Code Scanning
0.3MP CMOS scanner camera with LED fill-in light for fast detection.
Receipt Printing
57mm high-speed thermal printing with up to 5 cm/s print speed.

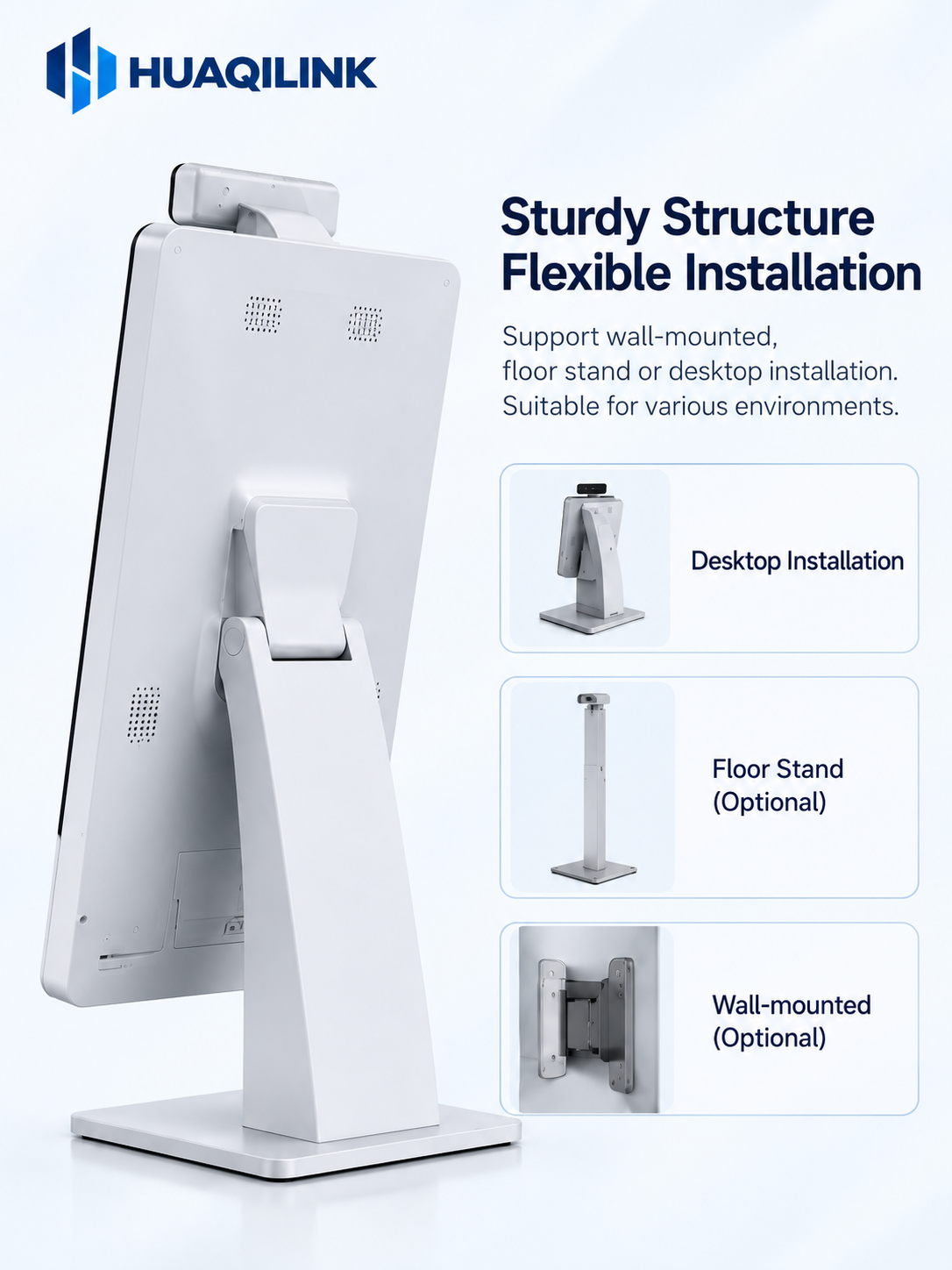

Flexible Installation
Compact format supports wall-mounted self-ordering and service workflows.
Product Gallery
Product, Functions and Installation
Specifications
Technical Configuration
Specifications follow the supplied catalogue. Optional items depend on the confirmed project configuration.
| Item | Specification | Item | Specification |
|---|---|---|---|
| OS | Android 11 and above | CPU | RK3566, 1.8 GHz, ARM 64-bit quad-core A55 |
| RAM | LPDDR4 3GB | Storage | eMMC 16GB, expandable up to 64GB |
| GPU | Mali-G52 2EE | NPU | 0.5 TOPS; INT8 / INT16 support |
| LCD Screen | 10.1-inch color display, 1024×600 | QR-Code Camera | 0.3MP CMOS camera with LED fill-in light |
| NFC (Optional) | Contactless type | Printer | 57mm high-speed thermal printing; maximum 5 cm/s |
| Backup Battery (Optional) | 18650 battery; 7.4V, 2000 / 5000 / 20000mAh | Power Adapter | Input 100-240V; output DC 9V / 5A |
| External Interfaces | DC 9V×1, USB×2, RS232×1, TF card slot×1, Mini-USB OTG×1, power switch×1 | ||
Applications
Where It Fits
Self-Ordering Restaurants
Quick-Service Counters
Food Courts
Unattended Service
Project Inquiry
Configure HQL-KIOSK15 for Your Project.
Share your scanning, payment, printing, installation and quantity requirements.
