HQL-POS15P
Smart POS with Built-in 80mm Printer
A compact Android POS terminal combining an 11.6-inch touch display, integrated 80mm thermal printing configuration and flexible payment-ready interfaces.
11.6-inch Touch80mm Thermal PrinterAndroid 13+Tap-to-Pay Ready
Key Features
Touch, Print and Pay in One Chassis
Designed for compact checkout counters where touch operation, receipt printing and payment expansion must work together.
11.6-inch Touch
1366×768 TFT display with G+G capacitive 10-point touch.
80mm Printing
Integrated 80mm thermal printing configuration with up to 10 cm/s print speed.
Android 13+
RK3566 platform with LPDDR4 memory and eMMC storage.
Payment Expansion
Tap-to-pay, card payment and optional barcode scanning support by configuration.

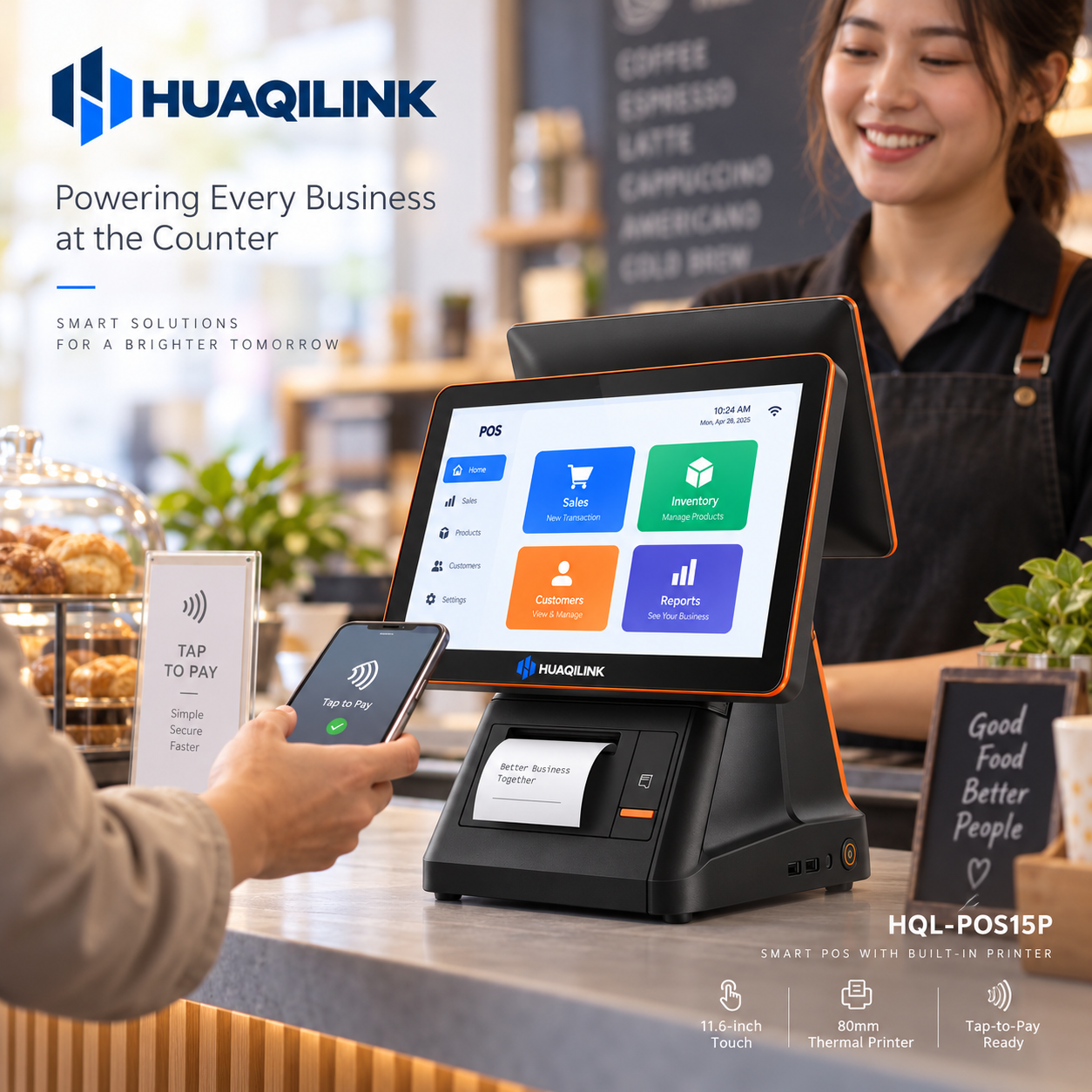

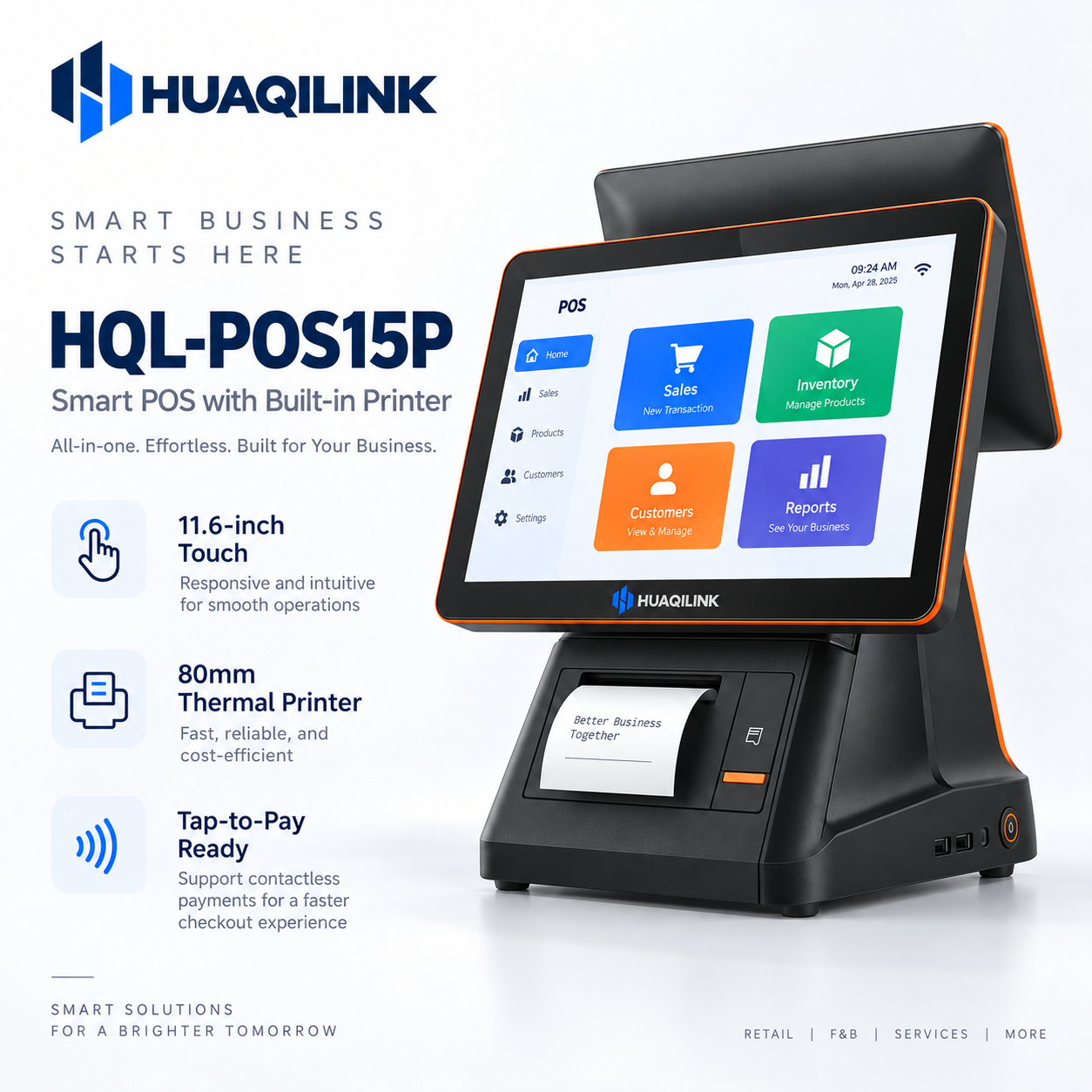

Product Gallery
Product Views and Checkout Application
Specifications
Technical Configuration
Specifications follow the supplied catalogue. Optional items depend on the confirmed project configuration.
| Item | Specification | Item | Specification |
|---|---|---|---|
| OS | Android 13 or higher | CPU | RK3566, 1.8 GHz |
| RAM | LPDDR4 3GB | Flash Storage | eMMC 16GB, 24-bit ECC |
| Main Display | 11.6-inch TFT, 1366×768 | NPU | 1 TOPS AI accelerator; INT8 / INT16 / FP16 support |
| Customer Display (Optional) | 2.4-inch TFT, 320×240 | Scanner (Optional) | 1D / 2D barcode support |
| Printer Configuration | 80mm paper width; maximum 10 cm/s print speed | Power Adapter | DC 12V / 5A |
| External Interfaces | DC 12V×1, USB×4, RJ11×2, RS232×1, TF×1, SIM socket×1 optional, audio jack×1, power switch×1 | ||
Applications
Where It Fits
Cafés & Bakeries
Retail Checkout
Community Stores
Quick-Service Counters
Project Inquiry
Configure HQL-POS15P for Your Project.
Share your payment, printing, interface and quantity requirements.
